LG 9000BTU Inverter WIFI - M10EJH

LG 9000BTU Inverter WIFI - M10EJH

Features

•Refrigerant Leak detection

•Power consumption as low as 2.2kwh per night

•Multi fan speed selection 1% - 100%

•Turbo fast cooling and heating

•Indoor noise as low as 20dB(A) - Indoo0r fan operates at super breeze

•Auto restart function / Eco mode

•Compressor frequency control operates seamlessy as the fluctuation in room temperature

•Delayed compressor start up and pre-heating

•Energy saving in sleep mode

•Convenience - multi-controller- wifi-remote-wall mounted options

•Comfort - turn off the display at night

•Wind avoid me - use the remote to instantly adjust the wind direction

•Active clean - Washes away dust, fungus and grease

Technical Specifications

Indoor Model 42QHG009DS - 42QHG012DS - 42QHG018DS - 42QHG022DS
Outdoor Model 38QHG009DS - 38QHG012DS - 38QHG018DS - 38QHG022DS
Power supply Ph-V-Hz 1Ph, 220-240V, 50Hz 1Ph, 220-240V, 50Hz 1Ph, 220-240V, 50Hz 1Ph, 220-240V, 50Hz
Cooling
Capacity W 2600 3500 5200 6500
Input W 700 1080 1560 2100
Rated current A 3.1 4.8 7 9.4
EER [Class] W/W 3,71 [A++] 3,24 [A] 3,33 [A] 3,1 [B]
Heating
Capacity W 3250 3800 6000 7200
Input W 890 1100 1750 1950
Rated current A 4 4.9 7.8 8.7
COP [Class] W/W 3.65 [A++] 3.45 [A+] 3.43 [A+] 3,69 [A++]
Max. input consumption W 2000 2000 2600 3300
Max. current A 10 10 13 16
Compressor
Type Rotary Rotary Rotary Rotary
Capacity W 3250 3250 4225 7715
Input W 834 834 1085 2085
Rated current
(RLA) A 5.7 5.7 7.58 9.45
Indoor Air flow (Hi/Mi/Lo) m3/h 460/360/265 530/400/250 780/560/460 1290/816/592
Indoor sound level (Hi/Mi/Lo) dB(A) 38.5/35/31 40/34/28 42/35/29 46/40/34
Indoor unit
Dimension (W*D*H) mm 726x205x292 806x200x296 971x226x321 1082x233x337
Packing (W*D*H) mm 790x270x375 875x285x380 1045x305x410 1155x415x315
Net/Gross weight Kg 8.2/10.5 9/11.4 11.4/14.7 13.4/17.1
Outdoor sound Level (Hi) dB(A) 55.5 55 59 61

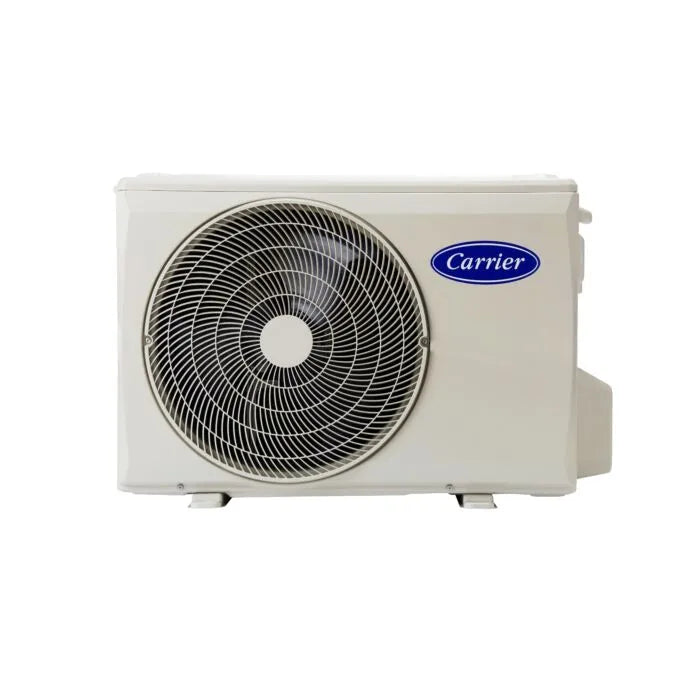

Outdoor unit
Dimension (W*D*H) mm 720/270/495 765/303/555 805/330/554 890/242/673
Packing (W*D*H) mm 835/300/540 887/337/610 915/370/615 995/398/740
Net/Gross weight Kg 23.2/25 25.4/27.7 33.3/35.9 43.1/46.2
Refrigerant type R410A g 700 880 1350 1620
Refrigerant
piping
Liquid side/ Gas
side mm (inch) 6.35+9.52 [1/4"+3/8"] 6.35+9.52 [1/4+3/8"] 6.35+12.70 [1/4+1/2''] 9.52+15.88 [3/8+5/8'']
Max. refrigerant
pipe length m 25 25 30 30
Max. height differ
ence m 10 10 20 20
Connection wiring (Size*Core) mm 1.5x4 1.5x4 2.5x4 2.5 x 5
Control type Remote Infrared Infrared Infrared Infrared
Operating
Temperatures
Indoor (cooling/
heating) ºC 16~32 / 0-30 16~32 / 0-30 16~32 / 0-30 16~32 / 0-30
Outdoor (cooling/
heating) ºC 0~50 / -15~24 0~50 / -15~24 0~50 / -15~24 -15~50/-15~24
