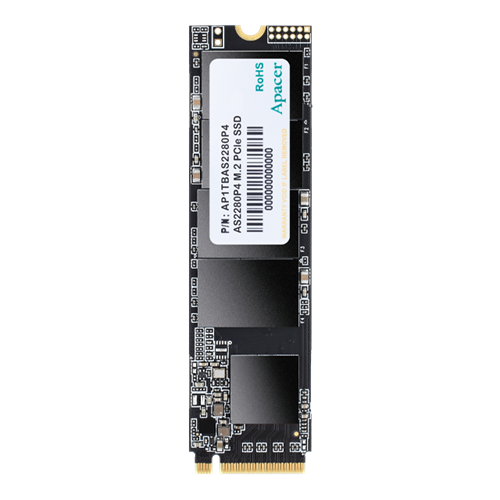

Apacer AS2280P4 256GB M.2 PCIe Gen3 NVMe SSD

Apacer AS2280P4 256GB M.2 PCIe Gen3 NVMe SSD – 256GB capacity, read/write speeds up to 3,000/2,000 MB/s with 360,000 IOPS for 4K random write, 3D TLC NAND flash and supports ECC up to 72bit/1KB for data integrity, shock resistance up to 1500G/0.5ms and vibration resistance (7~800Hz, 3.08Grms), Power consumption is low at 275mA active and 80mA idle, Operating temperature range from 0°C to 70°C, storage -40°C to 85°C. Comes in a slim M.2 2280 form factor with dimensions 80 x 22 x 2.25 mm, 2-year warranty(retail box)

Apacer AS2280P4 256GB M.2 PCIe Gen3 NVMe SSD - 256GB capacity, read/write speeds up to 3,000/2,000 MB/s with 360,000 IOPS for 4K random write, 3D TLC NAND flash and supports ECC up to 72bit/1KB for data integrity, shock resistance up to 1500G/0.5ms and vibration resistance (7~800Hz, 3.08Grms), Power consumption is low at 275mA active and 80mA idle, Operating temperature range from 0°C to 70°C, storage -40°C to 85°C. Comes in a slim M.2 2280 form factor with dimensions 80 x 22 x 2.25 mm, 2-year warranty

Product Overview



Apacer Technology Inc. PCIe NVMe M.2 Solid State Drives (SSDs) are based on the M.2 form factor, with a standard width of 22mm, making them ideal for mobile and compact computers. These SSDs feature SATA-based connector pinouts, ensuring full compliance with PCIe Gen3 x2 interface specifications.
The Apacer PCIe NVMe M.2 SSDs implement a hardware ECC scheme to detect and correct data errors, ensure data is being read correctly, and to protect data from corruption. Bad Block Management prevents data being stored in bad blocks, further improving data reliability. Wear Leveling spreads out the flash usage through the whole flash media area, greatly increasing the life expectancy.



Highlights

• PCIe Interface
• Compliant with NVMe 1.2
• Compatible with PCIe Gen3 x2 Interface
• Flash Management
• Temperature Range
• Shock and Vibration
• RoHS Compliant
• NAND Flash Type: 3D TLC



FEATURES

Specifications

• Stock Code:AP256GAS2280P4-1
• Description:Apacer AS2280P4 256GB M.2 PCIe Gen3 NVMe SSD
• Sustained Write Performance:Up to 2,000MB/s

• Capacity: 256GB
• Interface:PCIe Gen3 x4
• NAND Flash:3D TLC
• Sustained Read Performance:Up to 3,000MB/s
• IOPs (4K Random Write):Up to 360,000 IOPS
• ECC Support:Up to 72bit/1KB
• Shock:1500G/0.5msec
• Vibration:7~800Hz, 3.08Grms
• Low Power Consumption (Active/Idle):275/80mA
• MTBF:1,500,000 hours
• Humidity:5%~95%
• Standard Operating Temperature:0°C ~ +70°C
• Storage Temperature:-40 ~ +85°C
• Dimensions:(L)80 x (W)22 x (H)2.25mm
• Certificate:KCC, CE, FCC, VCCI, RCM, BSMI
• Warranty:3 Years
