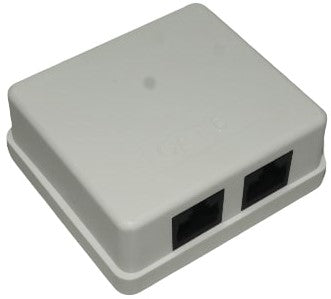

LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box

LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box – RJ45, CAT 6, 250MHz Bandwidth

LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box - RJ45, CAT 6, 250MHz Bandwidth

Product Overview

The LinkQnet CAT6 Double Wall Mount Surface Box offers dual device connections with two RJ45 female (8P8C) ports and an additional toolless IDC connection for easy cable termination. Designed for CAT6 UTP cables (AWG 24-22), it supports a maximum bandwidth of 250 MHz for efficient network performance. Its compact white housing measures 62.2x59.8x26.5 mm and includes screw assembly for secure wall installation.

Features

•For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
•Patch panel incl. fixing screws for mounting on wall and desktop
•CAT 6 distributor for cable diameters of up to 7.0 mm (AWG 22-24)
•With a clear plastic display to label the individual connections for a perfect cable management.
•2-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables

Specifications

•Product Code: CAT6WALL-DB
•Description: LinkQnet RJ45 CAT 6 Double Wall Mount Surface Box
•Connection, type: 2x RJ45 female (8P8C)
•Connection 2, type: for IDC connection (toolless)
Device connections
•Device Connections: 2
Cable
•Specification: CAT 6
•Shielding class: UTP
•AWG: 24-22
•max. bandwidth: 250 MHz
General
•Color: White
•Width: 62.2 mm
•Height: 59.8 mm
•Depth: 26.5 mm
•Consumption Unit: 1 pc
•Assembly Material: screws
