TechTrek  |  SKU: 560696

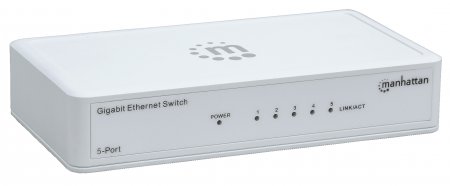

Manhattan 5 Port Gigabit Ethernet Switch

R 275.00 ZAR R 329.00
Shipping calculated at checkout.

Returns

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Learn more

Delivery

We offer free shipping on all orders above R500.00. Orders less than R500 will be charged a delivery fee of R150.Learn more

Manhattan 5 Port Gigabit Ethernet Switch – 5 x 10/100/1000 Mbps RJ45 ports, Supports Cat3, 4, 5 UTP/STP cables, Duplex modes on all ports up to 200 Mbps, Auto MDI/MDIX (Auto Uplink) on all ports, Store and forward switch technology,Packet filter/forward rates: 14,880 pps (10BaseT), 148,800 pps (100Base-TX), 1,488,000 pps (1000Base-T), Jumbo frame support 9 kB, Backplane speed 10 Gbps, LEDs for power and link/activity, External AC adapter 5 V 1 A, Dimensions 140 x 78 x 28 mm, Weight 0.33 kg

Manhattan 5 Port Gigabit Ethernet Switch - 5 x 10/100/1000 Mbps RJ45 ports, Supports Cat3, 4, 5 UTP/STP cables, Duplex modes on all ports up to 200 Mbps, Auto MDI/MDIX (Auto Uplink) on all ports, Store and forward switch technology, Standards IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Flow Control and Backpressure), IEEE 802.3az (Energy Efficient Ethernet), Packet filter/forward rates: 14,880 pps (10BaseT), 148,800 pps (100Base-TX), 1,488,000 pps (1000Base-T), MAC address table 2,048 entries, Buffer memory 256 kBytes, Jumbo frame support 9 kB, Backplane speed 10 Gbps, LEDs for power and link/activity, External AC adapter 5 V 1 A, Dimensions 140 x 78 x 28 mm, Weight 0.33 kg

Product Overview
The Manhattan 5-Port Gigabit Ethernet Switch is perfect for home office or entertainment system use, as well as many small office applications. Small, powerful and reliable, this Gigabit Ethernet Switch is easy to install and connects up to five Ethernet-ready devices — computers, gaming systems, network printers, media streamers, network attached storage, Smart TVs ... you name it — at speeds of up to 1000 Mbps (1 Gigabit) over standard Cat5e or Cat6 Ethernet cables.

The auto features of this switch make installation plug and play and hassle free. Plus, it has Green Ethernet technology, allowing it to monitor power usage and turn off unused ports to save electricity.

Features
• 5-port Gigabit Ethernet switch expands your network in an instant
• Easy plug-and-play installation — simply power it up and start using it
• Green Ethernet power-saving technology deactivates unused ports
• Supports any combination of 10 Mbps, 100 Mbps or 1 Gbps network devices
• Ultra-compact, Fanless design ideal for home and office applications
• Store and forward switching architecture
• Five 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Compatible with all Windows and Macintosh systems.

Specifications
• Connectors: 5 10/100/1000 Mbps RJ45 ports
• Cable: Cat3, 4, 5 UTP/STP
• Duplex modes: all ports (up to 200 Mbps)
• Uplink: all ports Auto MDI/MDX (Auto Uplink)
• Switch architecture: store and forward switch technology

Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control and Backpressure)
IEEE 802.3az (Energy Efficient Ethernet)

 • Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,488,000 pps (packets per second)
• MAC address table: 2,048 entries
• Buffer memory: 256 kBytes
• Jumbo frame support: 9 kB
• Backplane speed / switch fabric: 10 Gbps
LEDs
• Power
• Link/Activity

Power
• External AC adapter: 5 V, 1 A

Environmental
• Dimensions: 140 (w) x 78 (l) x 28 (h) mm
• Weight: 0.33 kg
• Operating temperature: 0 – 40˚C
• Humidity: 10 – 90% (non-condensing)

Package Contents
• 5-Port Gigabit Ethernet Switch
• Power adapter
• User manual
