Giada  |  SKU: DF612-1215U40N0G-GIA

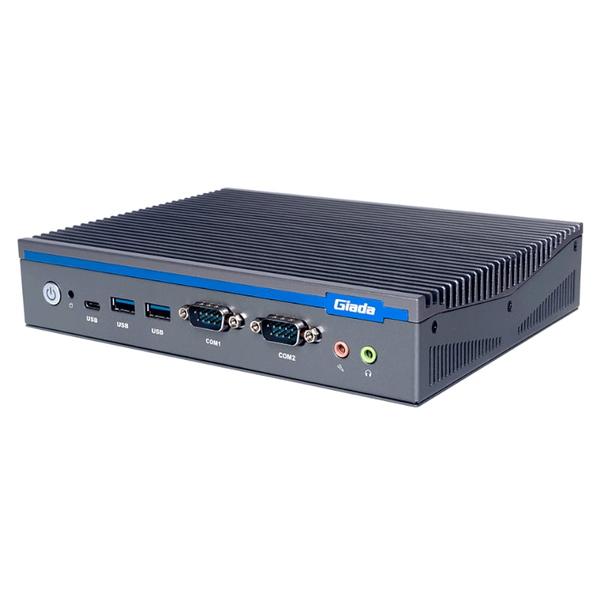

Giada DF612 i3-1215U 2x DDR4 3200Mhz

Regular price R 10,999.00 ZAR
Shipping calculated at checkout.

Returns

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Learn more

Delivery

We offer free shipping on all orders above R500.00. Orders less than R500 will be charged a delivery fee of R150.Learn more

The Giada DF612 Intel Core i3 is a high-end digital signage player that is ideal for work in hospitality, retail, commercial, service, and advertising. Its small and powerful design gives businesses the performance and efficiency of the Intel®CoreTM i3-1215U CPU, as well as two HDMI connectors that enable up to 4K resolution and one DisplayPort connection that supports up to 8K resolution. It is incredibly customizable because of its HDMI, USB ports, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards. Because of its VESA mount flexibility, it may also be mounted in a variety of ways and simply hidden behind a monitor or large format panel.

FEATURES:

  • Intel®Core™ i3-1215U processor
  • 1 x DisplayPort, Supporting 8K, 2 x HDMI, Supporting 4K Display
  • 2 x SO-DIMM DDR4 Memory, Up to 64GB
  • 1 x M-Key M.2 (2242/2280) for PCIe SSD
  • Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

  • Processor:
  • CPU: Intel® Core™ i3-1215U processor
  • Frequency: 3.30 GHz (Up to 4.40 GHz )
  • Cores: 6
  • BIOS: AMI EFI 64 Mbit
  • Memory:
  • Type: DDR4-3200MHz
  • Socket: 2 x SO-DIMM
  • Max Size: 64GB
  • Graphics:
  • GPU: Intel® UHD Graphics
  • Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
  • HDMI: 2 x HDMI (Max.4096 x 2304 @60 Hz)
  • DisplayPort: 1 x DP (Max.7680 x 4320 @60 Hz)
  • Network:
  • Controller: 1 x Intel® i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet
  • Interface: 2 x RJ45
  • Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
  • I/O:
  • USB: 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
  • USB Type-C: 1 x USB Type-C3.2 Gen2 (10 Gbps),
  • Serial Port: 1 x RS232, 1 x RS232/422/485
  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT
  • Button: 1 x Power on, 1 x CLR-CMOS
  • Antenna: 2 x Connector for Wi-Fi/BT, 2 x Connector for 3G/4G (Reserved)
  • Storage:
  • M.2: 1 x M-Key M.2 (2242/2280) for PCIe SSD
  • JAHC Tech:
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On: Power Activated Automatically Start
  • Operation System:
  • Windows: Windows 11 (64bit)
  • Linux: Linux Ubuntu (64bit)
  • Power:
  • Power Type: DC-IN
  • Input Voltage: 12V/19V
  • Environment:
  • Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
  • Relative Humidity: 95%@40℃ (non-condensing)
  • Certification: CE, FCC Class B, CCC
  • Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
  • Construction: Metal
  • Colour: Black
  • Dimensions: 20 x 15 x 4 cm

WHAT’S IN THE BOX:

  • Giada DF612 Intel Core i3 High-end Digital Signage Player – Black x1
  • WiFi Antenna x2
  • User Manual x1
