Securnix  |  SKU: CT5015

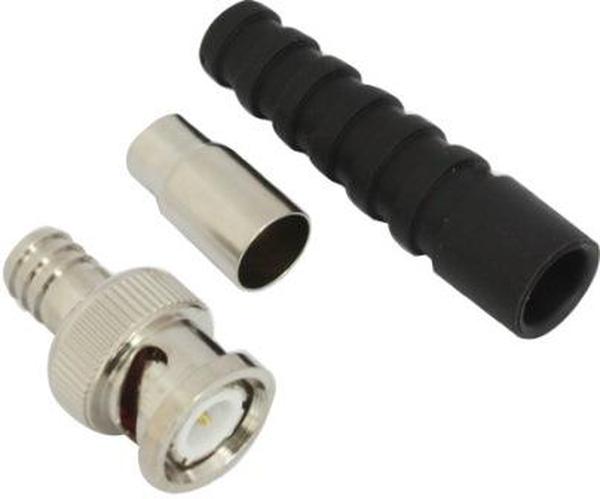

Securnix BNC male crimp on for RG59 cable

R 129.00 ZAR
Shipping calculated at checkout.

Returns

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return. Learn more

Delivery

We offer free shipping on all orders above R500.00. Orders less than R500 will be charged a delivery fee of R150.Learn more

Securnix BNC male crimp on for RG59 cable, with long boot 10 per Packet, , No Warranty

Securnix BNC male crimp on for RG59 cable, with long boot 10 per Packet

Product Overview
The Securnix BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-sub miniature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).Please Note Items sold as 10 pieces per pack

Features
• Gender: male
• Application: RF
• Insulation Resistance: ≥5000MΩ
• Character Impedance:50Ω
• Frequency Range:0~3GHZ
• Contact Resistance: centre conductor≤1.5mΩ; outer conductor≤1mΩ
• Disengage Force:≥0.6N
• BNC Male Crimp On Connector with Long Boot for RG59 U Cable
• Captive centre-pin design
• Two-step ferrule with strain relief crimp

Material:
• Body—zinc alloy, nickel plated
• Ring—copper, nickel plated
• Centre pin—copper, gold plated
• Boot­—rubber
