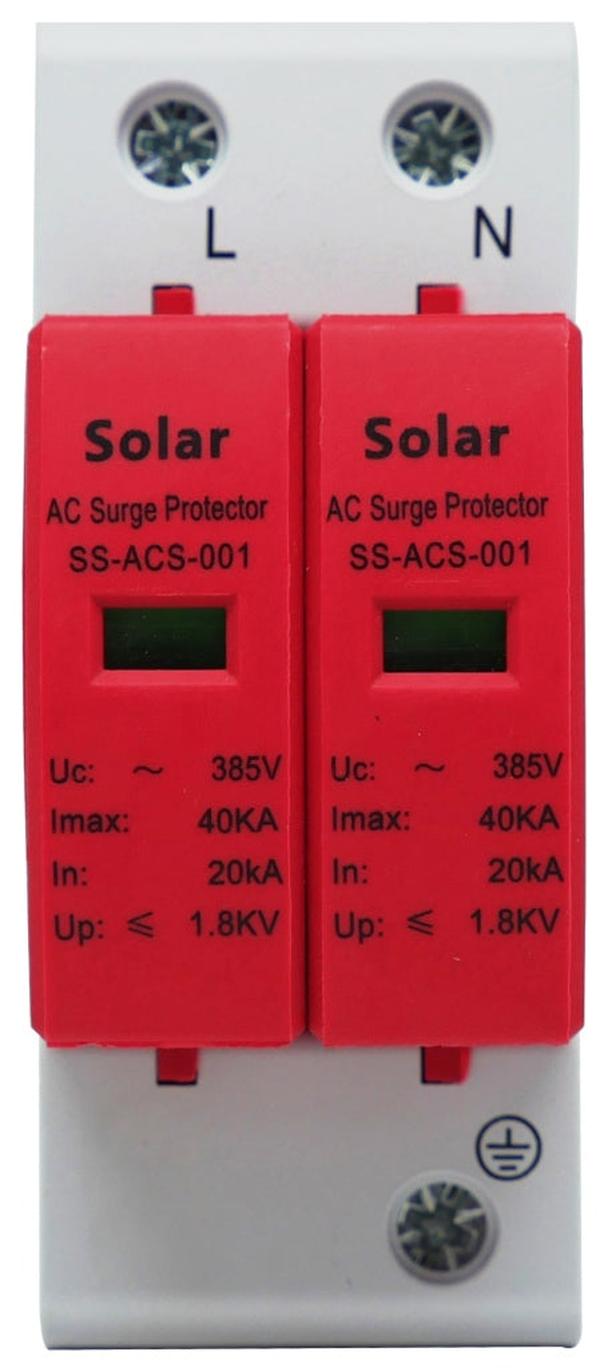

Solarix AC Surge Protector Device

Solarix AC Surge Protector Device - Single Phase, Suitable For 50Hz And 60Hz AC Power Supply System, Protects Your Appliances, Electronics, AC Circuits As Well As Solar Inverters From High Voltages And Surges, Compatible with AC circuits Only. Please Do Not Use Install It With DC Circuits, Ensure Proper Earthing When Installing, Rail Mount Installation, Retail Box, No warranty



Product Overview
The Solarix Single Phase AC Surge Protector Device is compatible with  AC Circuits Only. It is designed to protects your appliances, electronics, AC circuits as well as Solar Inverter from overvoltage and surges. It uses earthing to redirect current to the ground and can be used in any type of AC circuit. The Solarix AC Surge Protector Device requires proper earthing and grounding to function. It protects your electrical appliances from damage during real-time voltage fluctuations by redirecting excess voltage/current to the ground via earthing. It performs admirably in the presence of excess voltage supply, with a response time of less than 25ns (Nano second) and can be used in any type of AC circuit only. Please Do not use install  it with DC Circuits.





Specifications
• Stock Code  SOLSSACS001
• Solarix Single Phase AC Surge Protector Device
• Product Type AC Surge Protection Device
• 2 x Poles (1 Phase + 1 Neutral)
• Protection Type Over-Voltage (AC)
• Suitable For 50Hz And 60Hz AC Power Supply System
• Prevents Solar Inverters And Appliances Against High Voltages and Surges
• Response Time Of Less Than 25ns (Nano Second)
• Requires Proper Earthing  and Grounding When Installing
• Rated Operating Voltage Un(V) 220V
• Nominal Discharge Current (In):20KA
• Maximum  Continuous Operating Voltage (Uc) 385VAC
• Maximum Discharge Current (Imax.):40KA
• Maximum Voltage Protection Level( Up): ≤1.8KV
• Compatible With AC Circuits Only
• Please Do not use install  it with DC Circuits
• Rail Mount Installation
• Device Requires Proper Earthing And Grounding To Function
