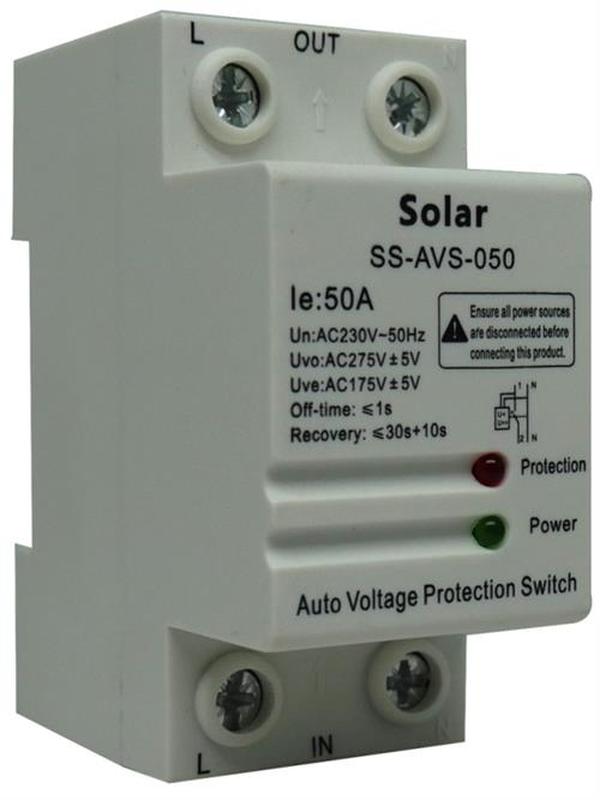

Solarix Auto Voltage Protection Switch-

Solarix Auto Voltage Protection Switch- Din Rail Mount, Passing Current Maximum 50A , Rated AC Voltage 230VAC, Frequency 50Hz, Over-voltage Cut-off Value 275VAC, Under-Voltage Cut-Off Value175VAC, Recovery Time <30s, Automatic Recovery Function , Over and Under Voltage Protection, Single Phase Installation, Colour White, Retail Box, No warranty

Product Overview
The Solarix Automatic Voltage Protection Switch is designed for single phase installation and mainly used for the protection of over-voltage, under-voltage, or over-current in the distribution line of residential household boxes or the protection of single-phase power equipment. Its main feature is overvoltage or Under voltage in the line, overcurrent condition, the product can cut off the power supply instantaneously, protect the electrical equipment from being damaged; when the line voltage returns to normal, the protector can automatically turn on the power supply normally. The automatic overvoltage protection device is suitable for single-phase AC voltage 230V, 50/60Hz.



Specification
• Stock Code SOLSSAVS050
• Description Solarix Auto Voltage Protection Switch
• Product Type 35mm Din Rail Mount Automatic Voltage Protection Switch
• Passing Current Maximum 50A
• Rated AC Voltage 230VAC, Frequency 50Hz
• Over-voltage Cut-off Value 275VAC
• Under-Voltage Cut-Off Value175VAC
• Recovery Time <30s
• Automatic Recovery Function
• Over and Under Voltage Protection
• Single Phase Installation
• Colour White
