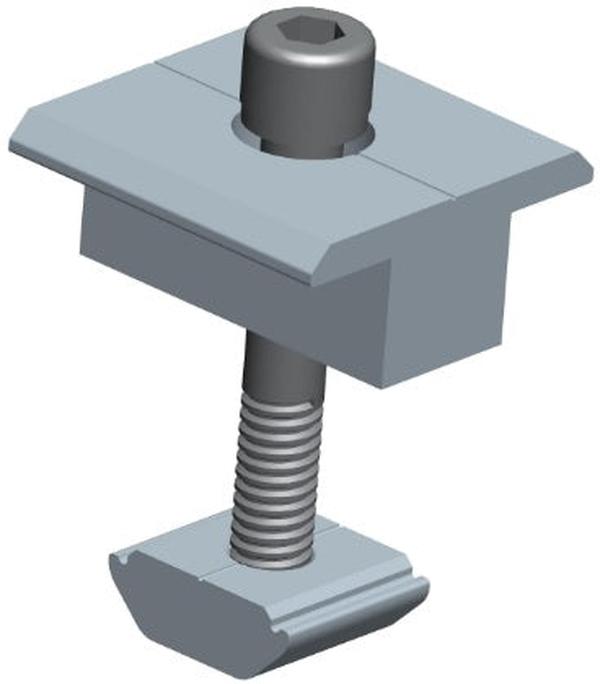

Solarix Mid Clamp 35mm Solar Panel Mounting
Solarix Mid Clamp 35mm Solar Panel Mounting- Aluminium 6005 T5 And Stainless Steel 35mm, Mid Clamp Is Installed Between The Solar Panel And The Board To Fix Two Solar Panels, Suitable For Pitched And Flat Roofs, Cladding Type: Tiled, Slate And Sheet Metal, Retail Box, No warranty
The Solarix Mid Clamp 35mm Solar Panel Mounting-Aluminium 6005 T5 And Stainless Steel 35mm is thicker and is often used in roof racking system to accommodate different thicknesses of solar panels by replacing the length of the bolts and is used between the solar panel and the board to fix two solar panels. Standard pre-assembly for the solar panels with thickness of between a maximum of 35-46mm.Easy and Quick installation. High strength, Anti-UV, high frequency insulation. Chemical Resistance and Anti-Corrosive.
Specifications
• Stock Code SOLPNSFST000101
• Description Solarix Mid Clamp 35mm Solar Panel Mounting
• Product Type Aluminium 6005 T5 And Stainless Steel 35-46mm
• Used In Roof Racking System To Accommodate Different Thicknesses Of Solar Panels
• Used Between The Solar Panel And The Board To Fix Two Solar Panels
• Standard pre-assembly for solar panels with thickness of between a maximum of 35-46mm
• Easy And Quick installation
• High Strength, Anti-UV, High Frequency Insulation
• Chemical Resistance And Anti-Corrosive
• Universal for both mid & end clamps 35-46mm
• Wind Load: 88m/s
• Snow Load: 2.0kn/㎡
• Applicable Module: Framed Modules
• Module Orientation: Landscape or Portrait
• Standards: AS/NZS 1170, MCS, JIS & SGS
• Suitable For Pitched And Flat Roofs, Cladding Type: Tiled, Slate And Sheet Metal
• Colour Silver
